MiniProfBT Wheel

Home » Railway technology » Profile measuring devices » MiniProfBT Wheel
The MiniProfBT Wheel is a high-precision, lightweight and portable tool for performing fast and reliable wheel profile measurements in cross-section to monitor and analyze wheel wear. It is equipped with Bluetooth, has a cable connection option and is available in several variants depending on the wheel type. Magnetically attached to the back of the wheel, the wheel profile is measured in less than 5 seconds and a complete railcar in less than five minutes.
Ask a question

Get immediate results

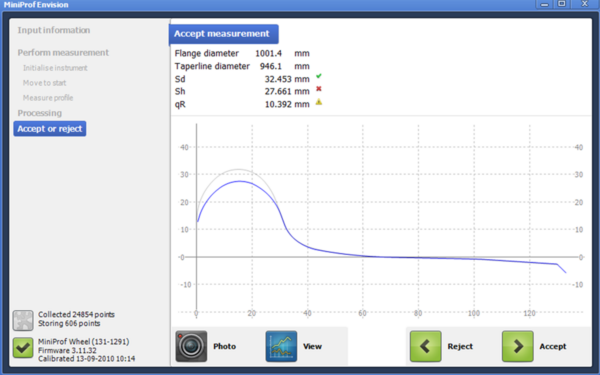

Wear parameters such as Sd, Sh and qR values are displayed in real time immediately after each measurement. The powerful Envision software includes numerous additional calculations and alignments for basic to advanced data processing, analysis and reporting.

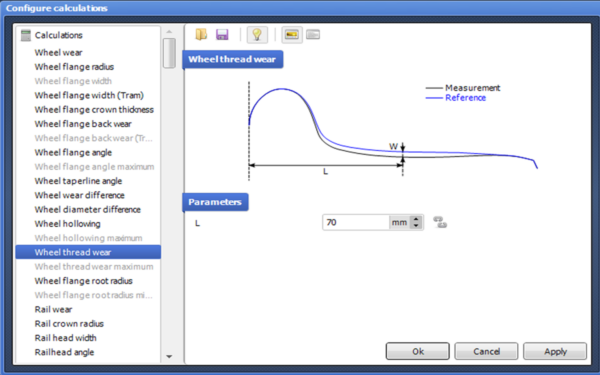

Wheel analyses & calculations

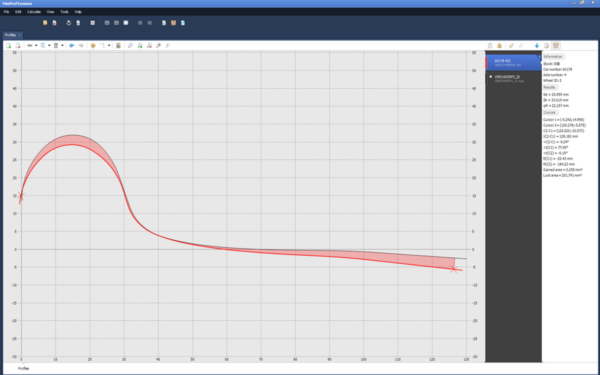

The MiniProfBT Envision software visualizes and calculates residuals and areas automatically. Measurements can be compared in various ways and can be easily exported in different formats.

Reprofiling

The MiniProfBT wheel system is ideal for determining when and how much material needs to be removed during re-profiling before and after re-profiling the wheels. This results in precise re-profiling and improved rolling stock life due to the unsurpassed accuracy of the MiniProf system.

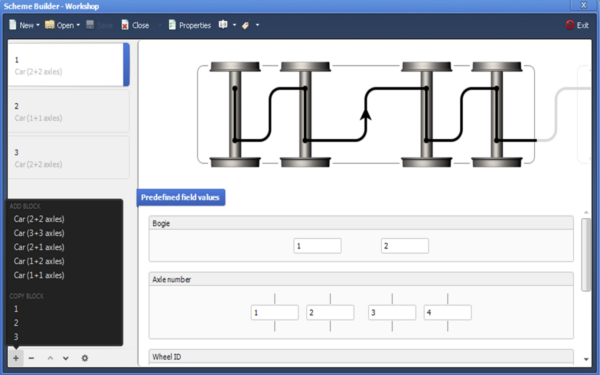

Fast measurement with schemes

When measuring multiple profiles, the MiniProfBT measurement scheme is a very powerful tool to clearly identify each profile in advance and further simplify and reduce the measurement process.

Which model to choose?

MiniProfBT Wheel Mini
100 mm back plate

The Wheel Mini can also be used when only limited measuring space is available.

Specification

Product ID

MiniProfBT Light Rail Wheel MP-160

Profile accuracy

Besser als: ± 9 µm
Wiederholgenauigkeit: ± 2.5 µm

Back-to-back accuracy

–

Accuracy Diameter measurement possible

No diameter measurement

Measuring speed

Less than 5 seconds

Weight

0.7 kg

MiniProfBT Envision
-configuration
-analyses


yes
yes

MiniProfBT Criterion
-configuration
-analyses


yes
only for selected calculations

MiniProfBT Wheel Back-to-Back
100 mm back plate

The wheel profile and the back-to-back distance of the wheelset are measured in a single, fast measurement.

Specification

Product ID

MiniProfBT Wheel MP-165

Profile accuracy

Better than: ± 9 µm
Repeatability: ± 2.5 µm

Back-to-back accuracy

200 µm –

Accuracy Diameter measurement possible

No diameter measurement

Measuring speed

Less than 5 seconds

Weight

2.0 kg

MiniProfBT Envision
-configuration
-analyses


yes
yes

MiniProfBT Criterion
-configuration
-analyses


–
–

MiniProfBT Wheel
400 400 mm back plate

For improved diameter measurement.

Specification

Product ID

MiniProfBT Wheel 400 MP-164

Profile accuracy

Better than: ± 11 µm
Repeatability: ± 2.5 µm

Back-to-back accuracy

–

Accuracy Diameter measurement possible
(based on the frequently used Versine measuring principle)*

800mm wheel: 30µm
1000mm wheel: 50µm
1200mm wheel: 80µm

Measuring speed

Less than 5 seconds

Weight

1.4 kg

MiniProfBT Envision
-configuration
-analyses


yes
yes

MiniProfBT Criterion
-configuration
-analyses


yes
only for selected calculations

* The diameter measurement of the MiniProf Wheel 400 is based on the frequently used Versine measuring principle and assumes an ideal wheel without deformations and perfect surface conditions. Based on a 100% perfect wheel, the MiniProf 400 offers a theoretical diameter accuracy depending on the size of the wheel to be measured (see values above).
