MiniProfBT Rail
Get immediate results

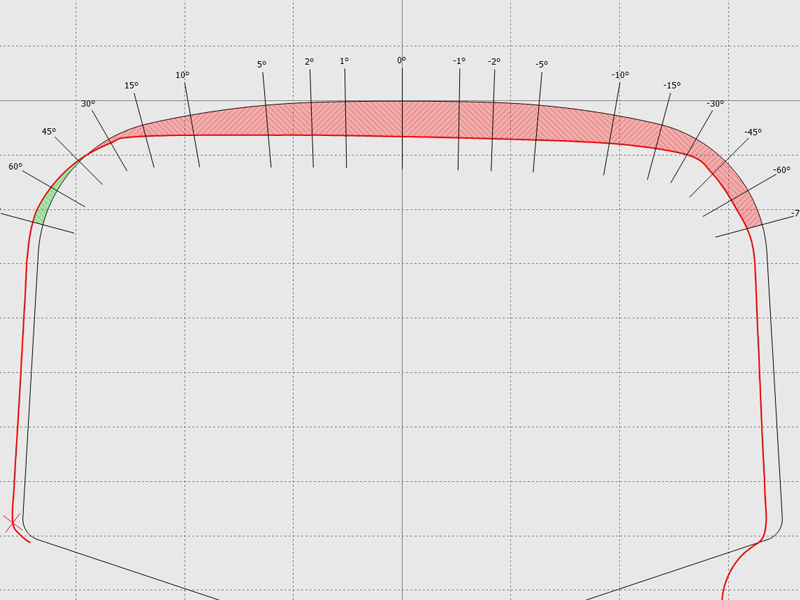

Vertical, horizontal and angled wear are displayed in real time immediately after each measurement. The powerful Envision software includes numerous additional calculations and alignments for basic to advanced data processing, analysis and reporting
Rail - Analyses & Calculations

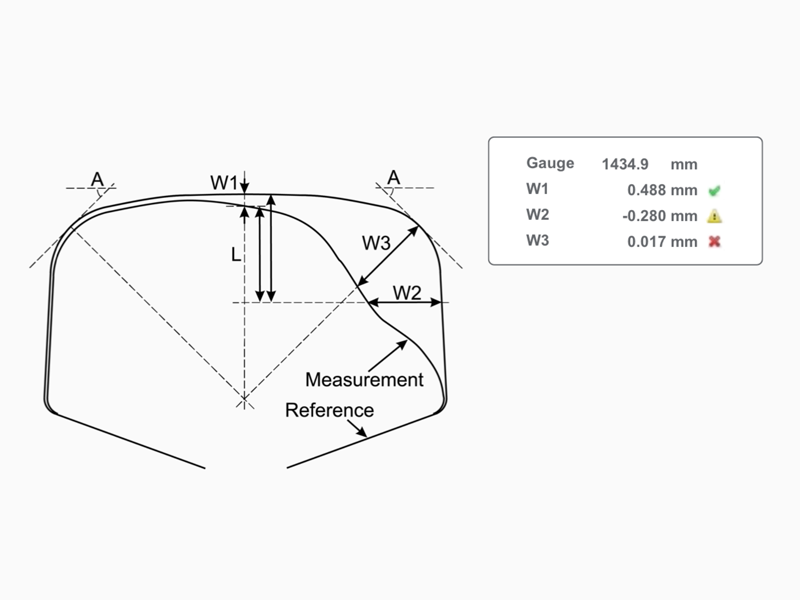

The MiniProfBT Envision software visualizes and calculates residuals and areas automatically and offers special functions that are often used for rail grinding analysis. Measurements can be compared in various ways and can be easily exported in different formats.
GPS location
The MiniProfBT Envision software can log GPS locations for each measurement taken and attach on-site photos to each measurement. This is very useful for identifying specific points of interest along the railroad.
Fast measurement with schemes
The MiniProfBT Envision software includes a measurement scheme system for performing large sequences of wheel, rail and brake profiles. With the intelligent scheme wizard, the user can create customized scheme solutions that meet their individual requirements for quick, easy and efficient profile measurements.
Gauge measurement

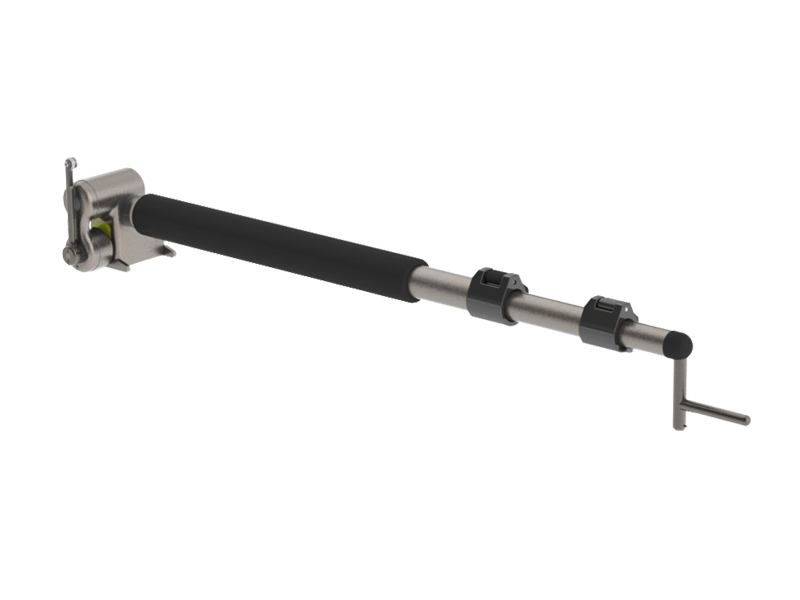

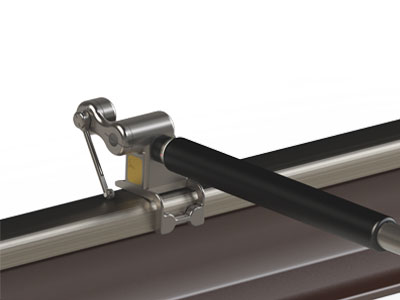

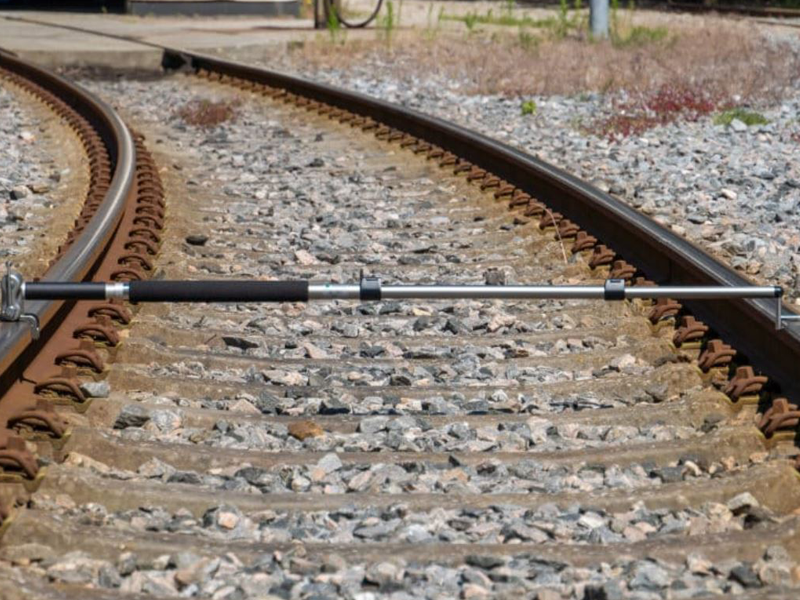

MiniProfBT Rail is equipped with a telescopic rod that uses the opposite rail as a reference to ensure a correct and stable position and prevent the instrument from tilting. Depending on the system configuration, the track gauge and profile measurement are provided simultaneously in a single measurement.
Superelevation and gradient
An inclination sensor automatically measures the cant and slope depending on the system configuration. The values are saved with the measurement and can be displayed at any time. The range of the measured inclination is ± 30 degrees.
Which model to choose?
MiniProfBT Rail with angle stop, without digital track width measurement
Specification
Product ID
Configuration
with angle stop without digital track gauge measurement telescopic rod quick-connecting

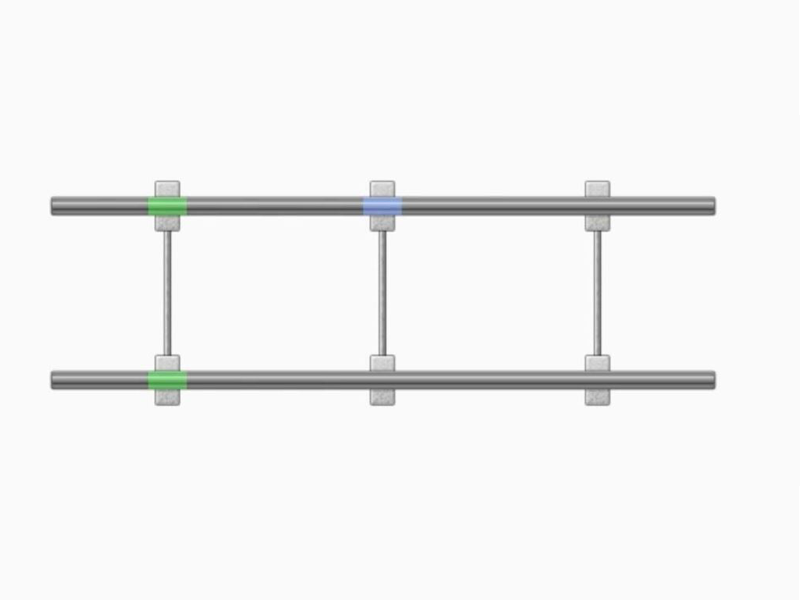

Multirod function (for different track gauges)
Profile accuracy
Better than: ± 11 µm Repeatability: ± 2.5 µm
Measuring speed
Less than 5 seconds
Weight
0.8 kg
Operating temperature
-15˚C to +50˚C
IP protection class
IPX4
MiniProfBT Envision
-configuration
-analyses
yes
yes
MiniProfBT Criterion
-configuration
-analyses
yes
only for selected calculations
MiniProfBT Rail with digital track width measurement, without angle stop
Specification
Product ID
Configuration
Digital track gauge measurement without angle stop Measurement of cant and gradient
Suitable for grooved rails
Telescopic rod quick-connect
Multirod function (for different track gauges)
Profile accuracy
Better than: ± 11 µm Repeatability: ± 2.5 µm
Measuring speed
Less than 5 seconds
Weight
0.7 kg
Operating temperature
-15˚C to +50˚C
IP protection class
IPX4
MiniProfBT Envision
-configuration
-analyses
yes
yes
MiniProfBT Criterion
-configuration
-analyses
yes
only for selected calculations
MiniProfBT Rail with digital track gauge measurement, with angle stop
Specification
Product ID
Configuration

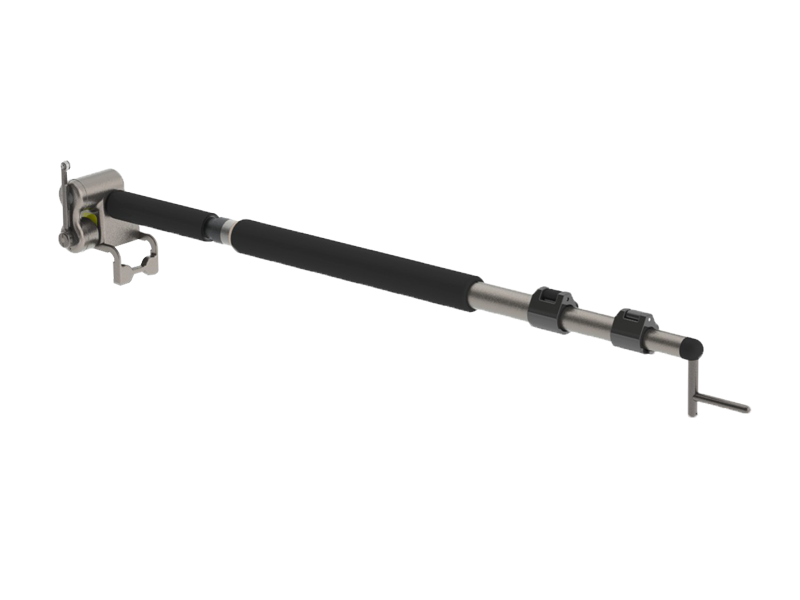

Digital track gauge measurement with angle stop Measurement of superelevation and gradient Telescopic rod quick-connect
Multirod function (for different track gauges)
Profile accuracy
Better than: ± 11 µm Repeatability: ± 2.5 µm
Measuring speed
Less than 5 seconds
Weight
0.7 kg
Operating temperature
-15˚C to +50˚C
IP protection class
IPX4
MiniProfBT Envision
-configuration
-analyses
yes
yes
MiniProfBT Criterion
-configuration
-analyses
yes
only for selected calculations
