Sanding
Sanding systems are used on rail vehicles to ensure sufficient friction between the wheel and rail even in poor conditions.
MBM sand systems consist of perfectly matched individual components which can be combined in many different ways to meet your individual requirements and wishes.
Rail vehicles have a major advantage over vehicles with rubber tires: Their rolling resistance is very low.
Hardly any energy is lost through friction. This is what makes rail transportation so efficient and environmentally friendly. However, if you want to brake quickly, this desirable property becomes a disadvantage, as the highest possible friction would then be desirable.
The braking distance for rail vehicles is normally much longer than for cars, for example. This is especially true in wet conditions. In the fall, there is also contamination from wet leaves, which often leads to major problems when braking, but also when starting on inclines.
Wouldn’t it be great if you had a button with which you could simply increase the otherwise beautifully low friction of the rail vehicles if required?
MBM offers just such a “button”!
MBM sand spreading systems can – at the push of a button or automatically controlled by the rail vehicle – spread finely dosed sand directly in front of the wheels to increase the friction between wheel and rail if necessary.
With MBM sand-spreading systems, rail vehicles can be driven efficiently and in an environmentally friendly manner with low friction and, if necessary, braked with high friction, just as efficiently and in an environmentally friendly manner.
We offer customized sanding systems for every type of rail vehicle, from construction vehicles to shunting locomotives, streetcars, light rail vehicles, regional and long-distance trains and high-speed trains, we have a suitable solution for all applications.
Our customers are large and small rail vehicle manufacturers, but also rail vehicle operators who want to replace old or unreliable sanding systems with new MBM sanding systems.

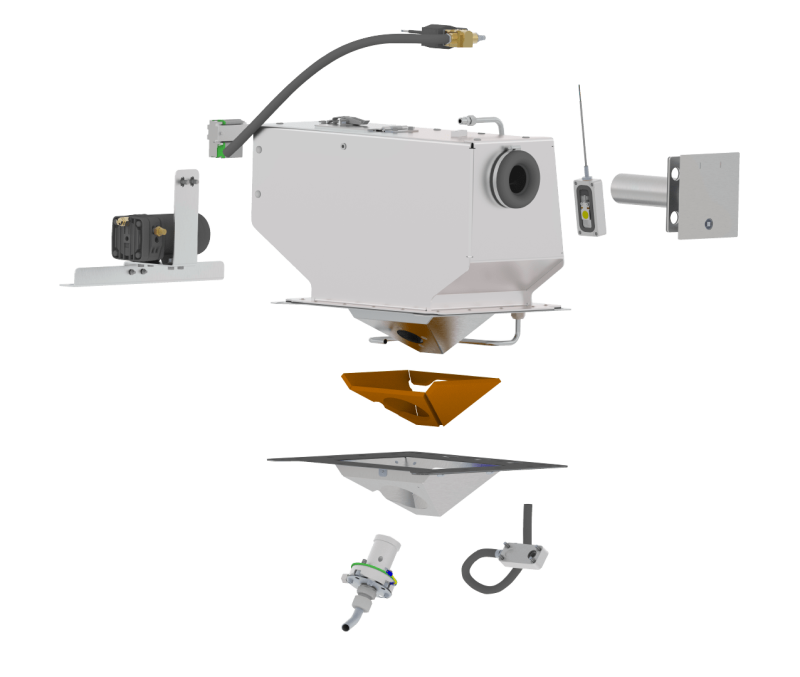

How should the system be equipped?
Dosing device - MBM Sandmaus®
The dosing unit is the most important component of a sanding system. It doses and conveys the sand from the sand container via a sand hose into the wheel/rail gap.
The dosing unit – MBM Sandmaus® – conveys sand purely pneumatically. A vacuum is created inside the Sandmaus by applying compressed air and the Venturi principle. This sucks the sand out of the sand container. There are no moving parts in the sand that could easily jam and be exposed to the abrasive effect of brake sand.
In order to be able to suck sand out of a container with air, the container must be ventilated. (The air used to suck the sand out of the container must somehow get into the container). This ventilation is already integrated in the MBM Sandmaus®. The aeration integrated into the dosing unit is a patented unique selling point of the MBM Sandmaus® and makes a decisive contribution to the accuracy and reliability of the sanding system.
The MBM Sandmaus® is available in many different versions – vertical or horizontal sand discharge, heated or unheated, with or without re-blowing function, with constant or speed-dependent controllable sand quantity, for natural sand or additional alternative gritting agents and many more. All variants have the patented internal aeration in common and, of course, the associated precise and reliable sand dosing.
Sand container
The sand container stores the brake sand. The container is designed taking into account the available installation space. The trickling behavior of the sand is calculated at the design stage with the aid of modern 3D simulation in order to determine the optimum shape of the sand container. This makes it possible to optimize the shape of the container right from the virtual model. The finished container makes optimum use of the available installation space, empties completely and can be filled optimally.
Filler flap
The filler flap is used to fill the sand container and closes the container so that it is watertight and dustproof. Filler flaps can be supplied in all conceivable shapes and colors, also with project-specific locks. What all filler flaps have in common is their solid construction made of high-quality, corrosion-resistant materials for a long, trouble-free service life.
Level sensor
The sand filling quantity in the container can be monitored using simple sight glasses or specially installed sensors. For easily accessible containers, the classic sight glass is hard to beat. In streetcars, level sensors have become established for level monitoring due to the usually inaccessible position of the containers. Of course, we also offer continuously measuring fill level sensors that can display the container fill level practically from 0% to 100%. In our opinion, however, this is more information than necessary.
Compressed air generation -
MBM small compressor
The compressed air required for sand dosing is either provided by the vehicle or generated by a small compressor. The MBM compressor consists of a pump section with a 24V DC motor. The compressor is also designed as simply as possible and is therefore very reliable and stable. The pump section of the compressor works according to the vane cell principle. The separating vanes required for this are made of special carbon and therefore require no lubrication. The motor used is a “real” DC motor that is commutated with carbon brushes. The motor is therefore extremely reliable and durable and does not require any electronic control for operation. The often criticized wear on the carbon brushes is completely uncritical in our application due to the very short switch-on and operating times. The brushes can of course be easily checked and replaced if necessary. However, replacement is only necessary in very rare cases.
Compressed air control-
Pneumatic components
The compressed air required for sand metering is often supplied via the vehicle’s existing compressed air system. On request, pneumatic components such as shut-off valves, pressure-regulating valves, on/off control valves and valves for variable control of sand metering can be supplied by MBM. It goes without saying that only tried-and-tested components suitable for railway applications are used.
Sand nozzle
The sand nozzle directs the sand jet precisely into the gap between the wheel and the rail and protects the sand hose from excessive ingress of splash water. MBM sand nozzles are made from high-quality, corrosion-resistant materials and can be fitted with electric heaters on request to further improve their performance in winter conditions.
Winter suitability - heating
The already good winter suitability of the sanding systems can be further improved by using electric heaters at selected points. Heaters are commonly used for the sand container or for the dosing device and for the end of the sand guide hose or the sand nozzle attached there.
Alternative gritting material - MBM RailGrip
MBM RailGrip
- No particulate matter
- Completely non-toxic
- Only 10% of the amount is needed
- Confirmation that the track is clear
- 10 times fewer refuelling stops
Sand
- Hundreds of tonnes of particulate matter per year
- Harmful to health – silicosis
- Large quantities required
- Accidents caused by incorrect track clearance signals
- high costs due to frequent refuelling
MBM RailGrip® is an alternative to conventional, natural sand as a gritting agent. It is a ceramic granulate (Al2O3, also known as corundum) that has excellent properties as an adhesion enhancer on rail vehicles. In order not to go beyond the scope of this article, some advantages over natural sand are only briefly described here. For further details, please contact
. It should only be mentioned here that the MBM Sandmaus in the DuAL version can discharge both sand in conventional quantities and MBM RailGrip in the very small quantities required for this (approx. 10% of sand). This also makes any desired conversion during operation as simple as possible
Examples of sanding systems
