Wheel flange lubrication
The components of wheel flange lubrication
The solid lubrication system requires neither a power supply nor a complex control system. The lubricating pins are applied directly to the wheel in minute quantities using simple but clever mechanical applicators. The solid lubrication system is completely self-regulating; the lubricant is applied to the wheel-rail contact exactly where it is needed.

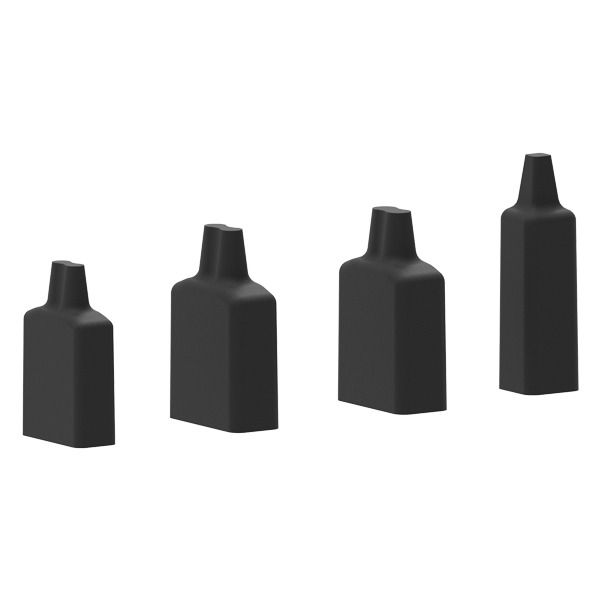

µSTICKS
Advantages:
– Simple application without the need for energy or control
– Complies with the latest fire protection guidelines (EN 45545 HL3)
– Highly effective – significantly better than conventional oils and fats
– Dramatically extended service life for wheel and rail
– Less noise
– Less energy/fuel consumption
– Lower maintenance costs due to longer re-profiling intervals
µSTICK® and µSTICK® TOR are solid lubrication systems for wheels and rails. The lubricating stick, a dry lubricant embedded in a special polymer matrix, is applied directly to the wheel.
µSTICK® ensures extremely low friction values between the wheel flange and the running edge of the rail, thus dramatically reducing wear.
µSTICK® TOR ensures an optimum traction coefficient (“positive friction”) between the running surface of the wheel and the rail head, which increases with increasing slip. This guarantees optimum traction without noise and without the formation of slip waves.
Both systems only need to be fitted to a few axles per vehicle for a fleet-wide effect.
Extended service life for wheel and rail – as simple as possible!
The solid lubrication system requires neither a power supply nor a complex control system. The lubricating pins are applied directly to the wheel in minute quantities using simple mechanical applicators. The solid lubrication system is completely self-regulating, the lubricant is applied to the wheel-rail contact exactly where it is needed.
Meets the latest fire protection guidelines – EN 45545 HL3!
This makes µSTICK® a wheel flange lubrication system suitable for tunnels!

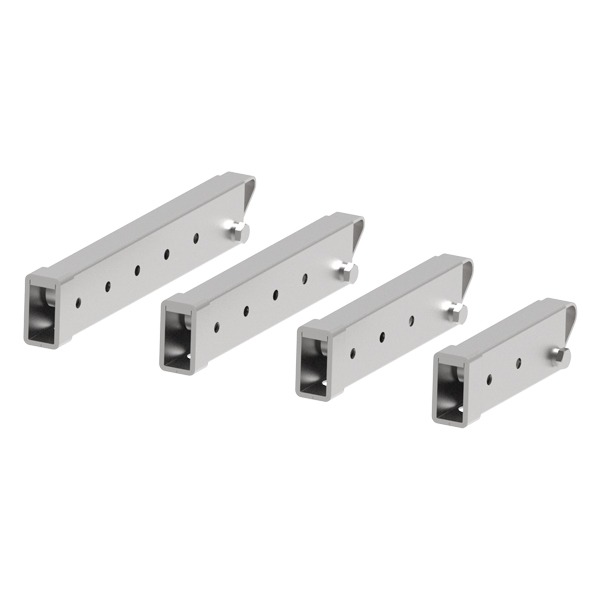

Applicators
The solid lubrication system requires neither a power supply nor a complex control system. The lubricating pins are applied directly to the wheel in minute quantities using simple but clever mechanical applicators. The solid lubrication system is completely self-regulating, the lubricant is applied to the wheel-rail contact exactly where it is needed.

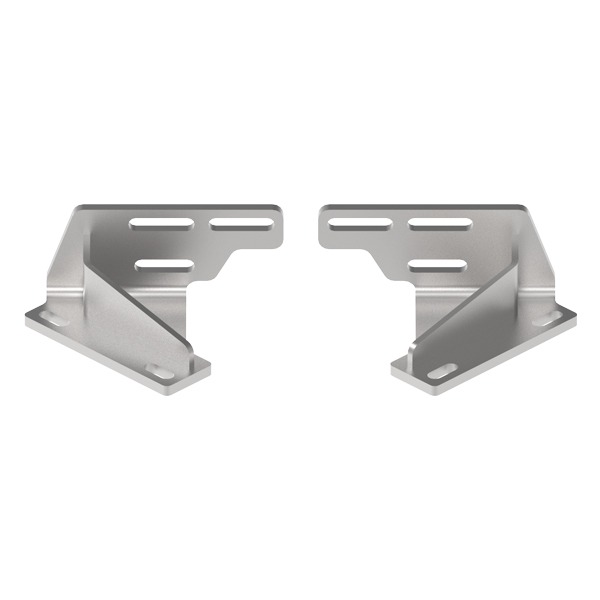

Holder
The µSTICK applicators are positioned on the wheel using vehicle-specific holders. The brackets can also be designed by the vehicle manufacturer if required. We are of course happy to support you with our expertise and experience.
µSTICK holders from MBM are specially designed and calculated for your vehicle and welded to the highest quality standards for railroad use. Once again, the experience of several decades and the creativity of our developers help us to find a suitable place for a solid bracket even in the most challenging installation spaces. You are welcome to try us out…
